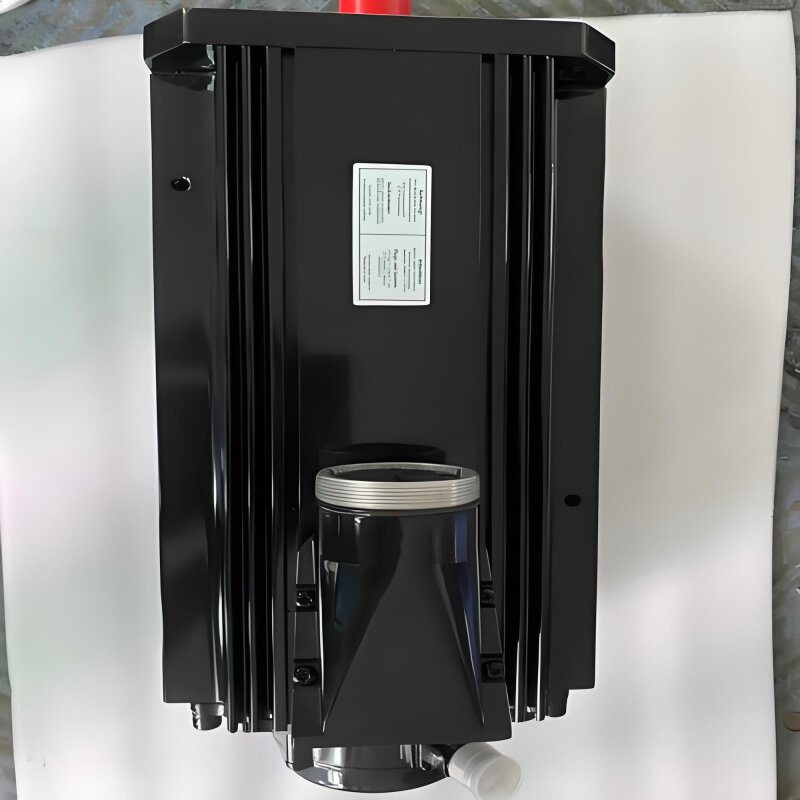

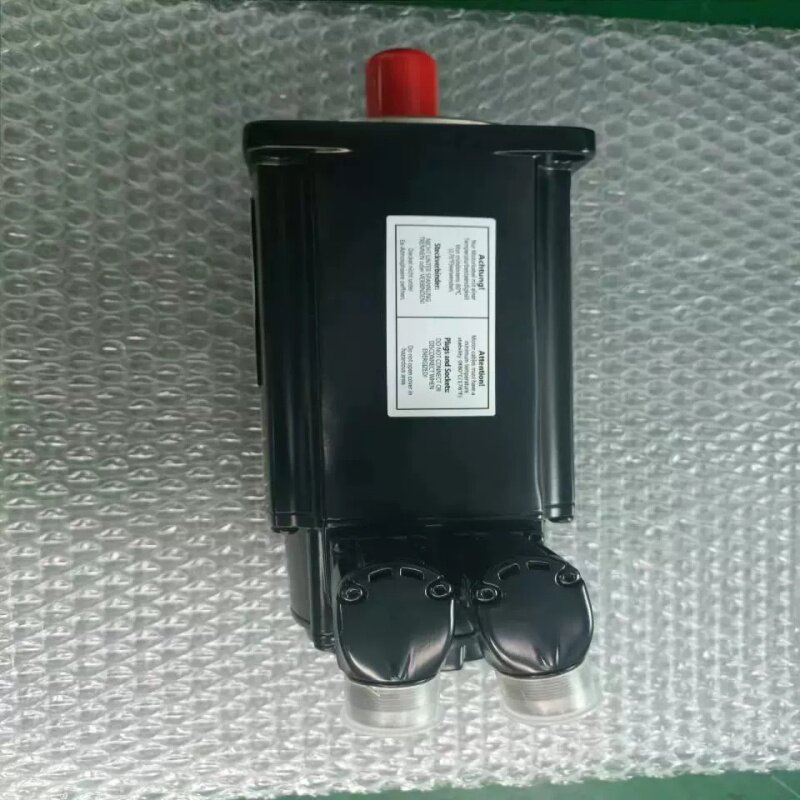

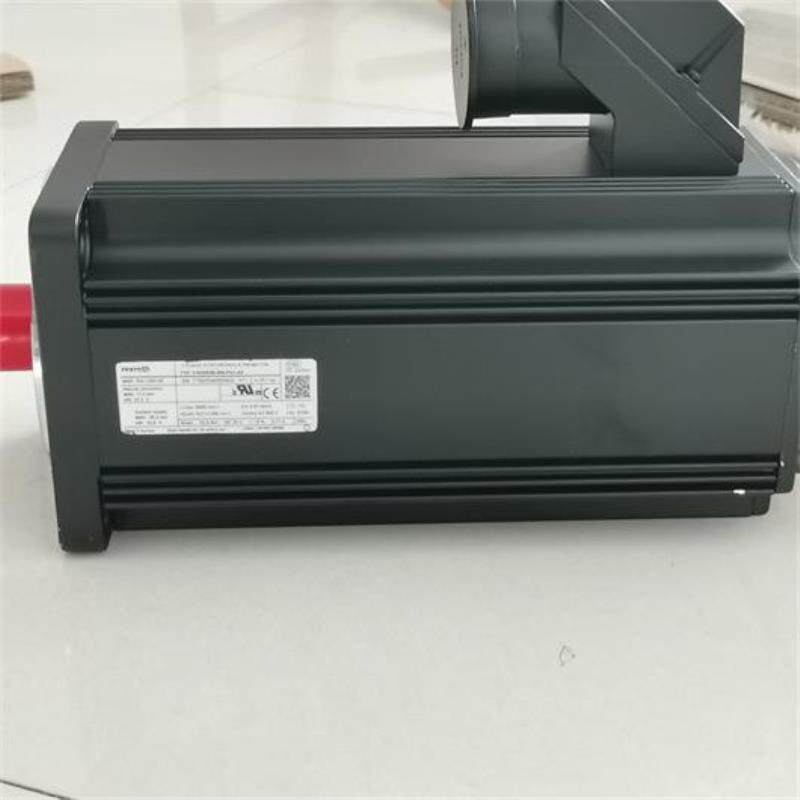

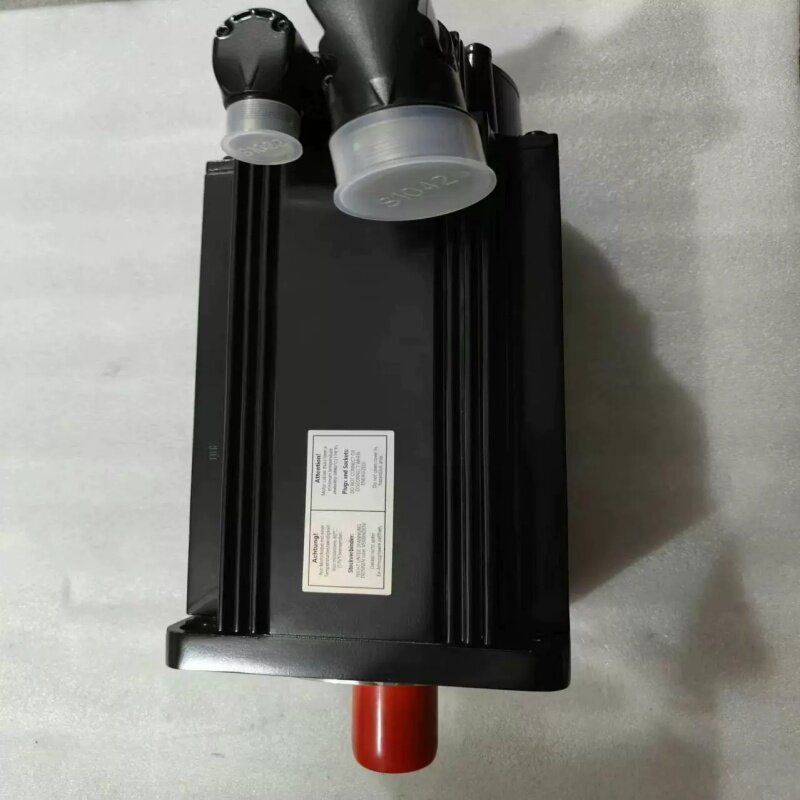

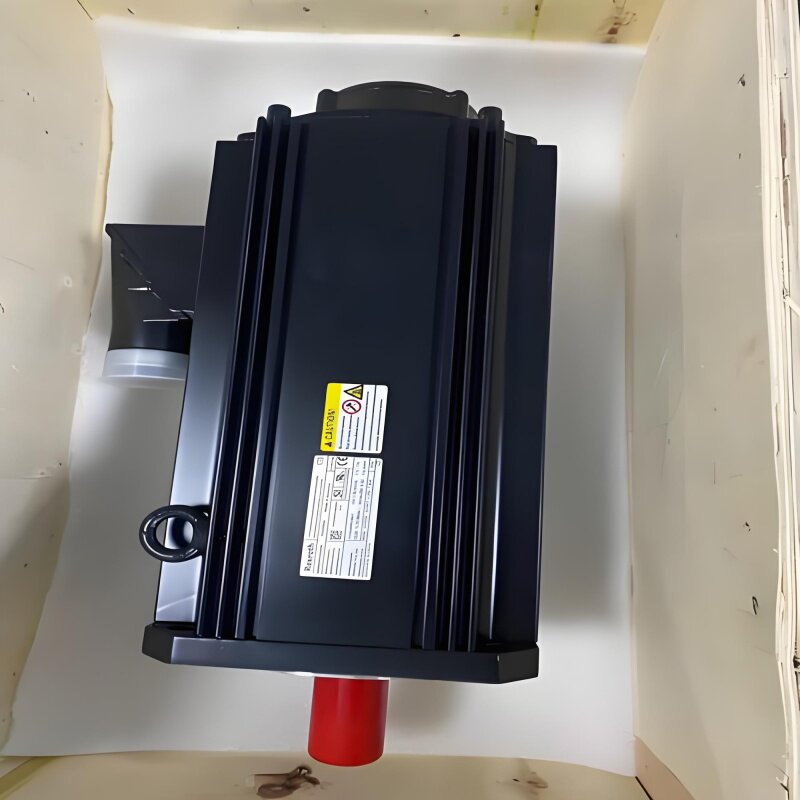

Brand New Original Bosch Rexroth Servo drive MS2N03-B0BYN-HMSH1-NNNNN-NN Servo Motor Fast Shipping

The Bosch Rexroth Indramat MS2N03-B0BYN-HMSH1-NNNNN-NN from the MS2N Synchronous Servo Motors series is a high-performance synchronous servo motor designed for precision automation applications. It features a maximum speed of 9000 rpm and a rated speed of 6470 rpm, delivering rapid response and high dynamic performance. Equipped with a 24 Volts DC holding brake, the motor provides a reliable holding torque of 1.81 Nm for secure positioning under power-off conditions. The robust design incorporates a smooth, no-shaft-seal shaft and a M23 single-cable turnable connection to simplify installation and reduce downtime.

The servo motor integrates a 4096 increments encoder resolution for ultra-precise feedback and positioning accuracy. Its high torque density yields up to 1.2 Nm torque output, making it well suited for low-torque robotic and indexing tasks. Thermal protection is built in: a temperature warning threshold at 140 degrees Celsius triggers an alert before operation reaches critical levels, and an automatic shutdown at 145 degrees Celsius safeguards the windings from damage. Continuous monitoring is achieved via the embedded PT1000 RTD sensor, ensuring swift response to temperature excursions and extending service intervals.

Engineered for harsh industrial environments, the motor carries an IP 65 protection rating to resist dust and washdown cleaning. Its operational temperature range of 0 to 45 degrees Celsius and class F fire insulation rating (up to 170 degrees Celsius) ensure reliable performance under thermal stress. Together, these features make the MS2N03-B0BYN-HMSH1-NNNNN-NN an ideal solution for precision-driven applications requiring compact form, robust safety, and high-frequency responsiveness.
