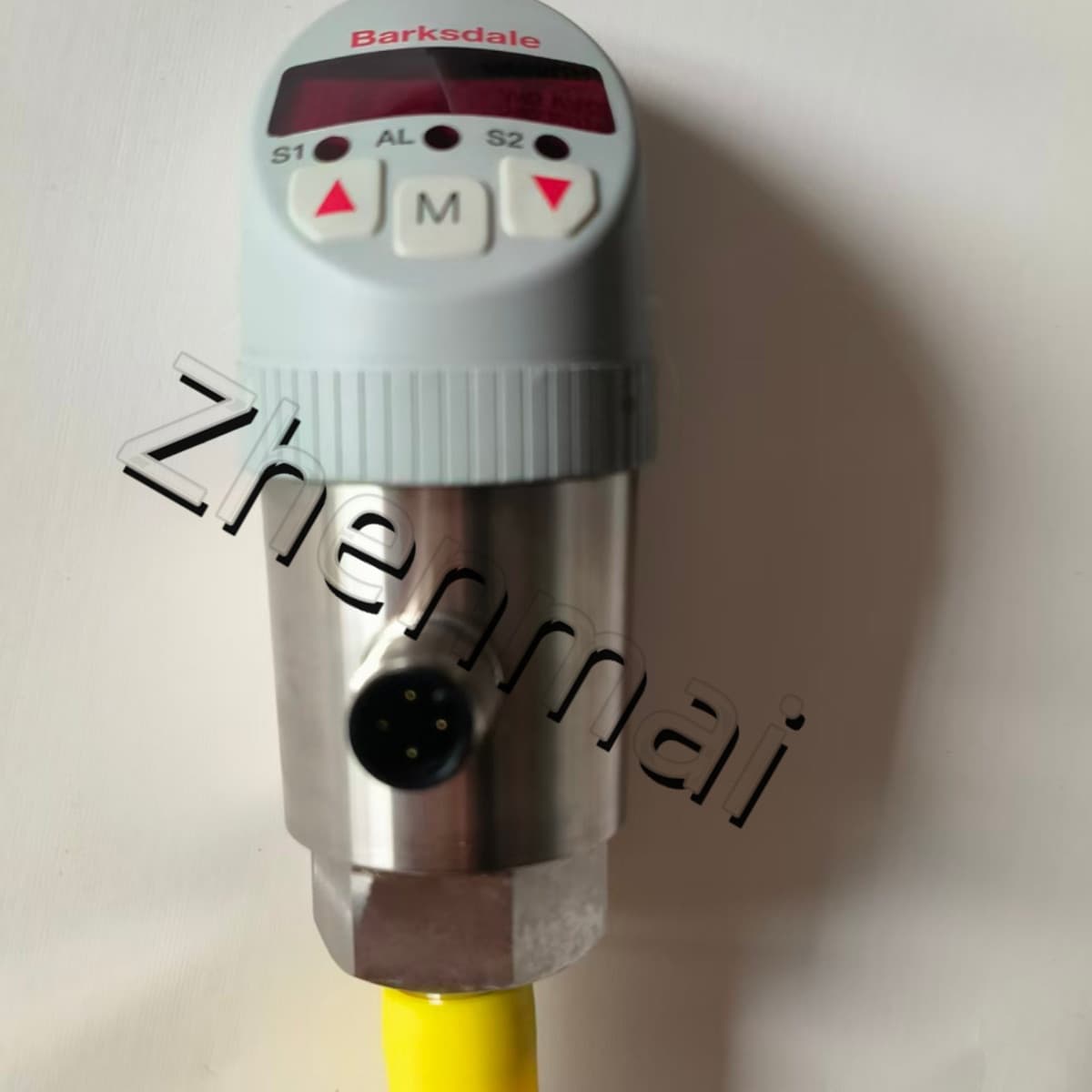

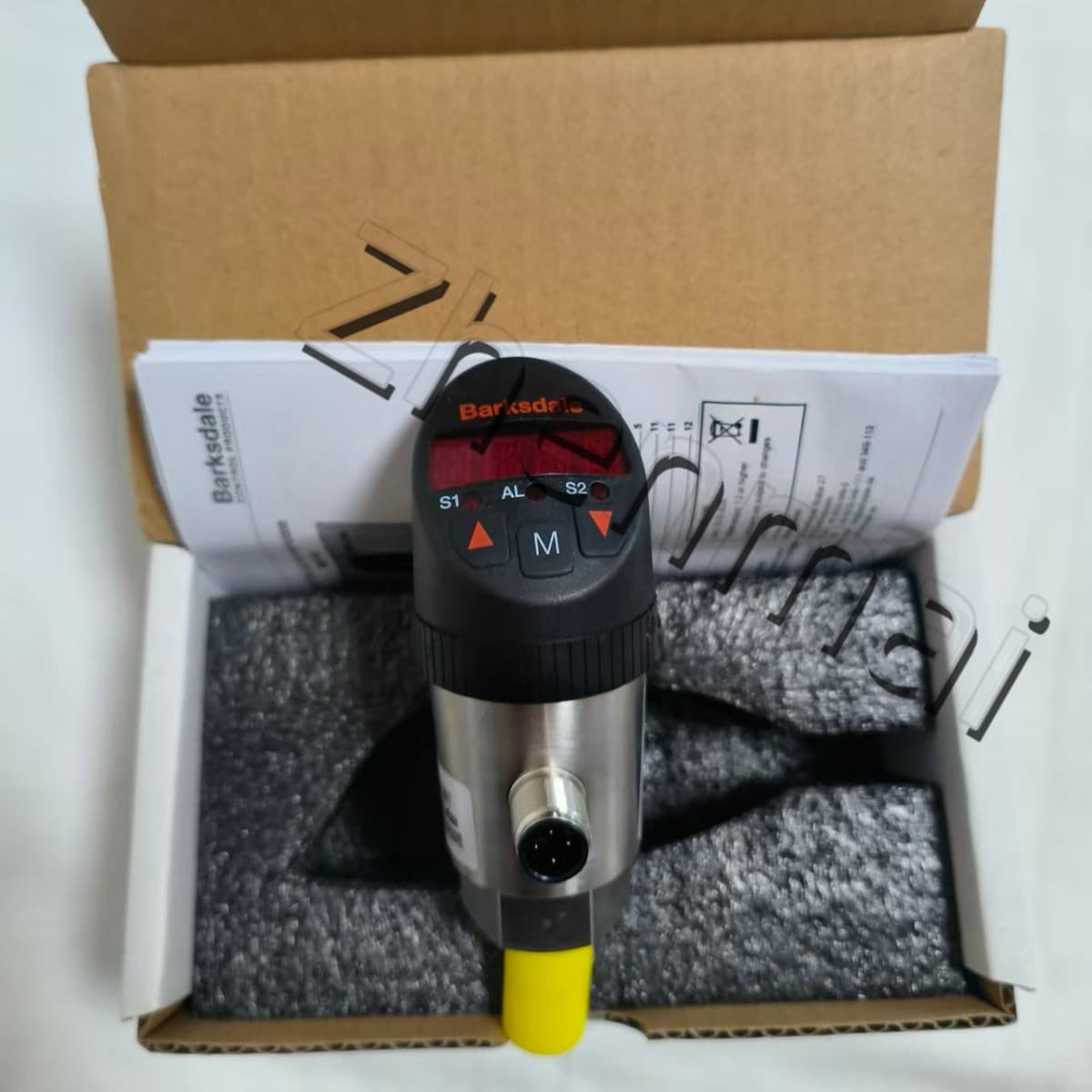

Brand:
BarksdaleModel:
BPS31GVM0050BFamily Series:
Barksdale Control Products Pressure SwitchesDescription:
SWITCH BPS3000, 2SP,G1/4Frequency:
100 HzAmbient Temperature:
14-158 °FProtection Rating:
IP65, IP67Electrical Connection:
M12 PlugConnection:
G1/4 Flush Diaphragm Female SealMaterial:
Stainless SteelOutput:
Dual Switch PointApplication:
► Provides pressure control for the following applications: • Hydraulic and pneumatic systems • Lubrication systems • Cooling systemsFeatures
► Pressure range: 0...-1 bar and 0...600 bar gauge pressure
► Up to two switching points
► Analogue output: 4–20 mA or 0–10 V
► Display and electrical connection sections can be rotated independently through 320° ► Menu settings comply with VDMA standards
► IO-Link communication protocol
