Brand:
BarksdaleModel:
96201-BB4Family Series:

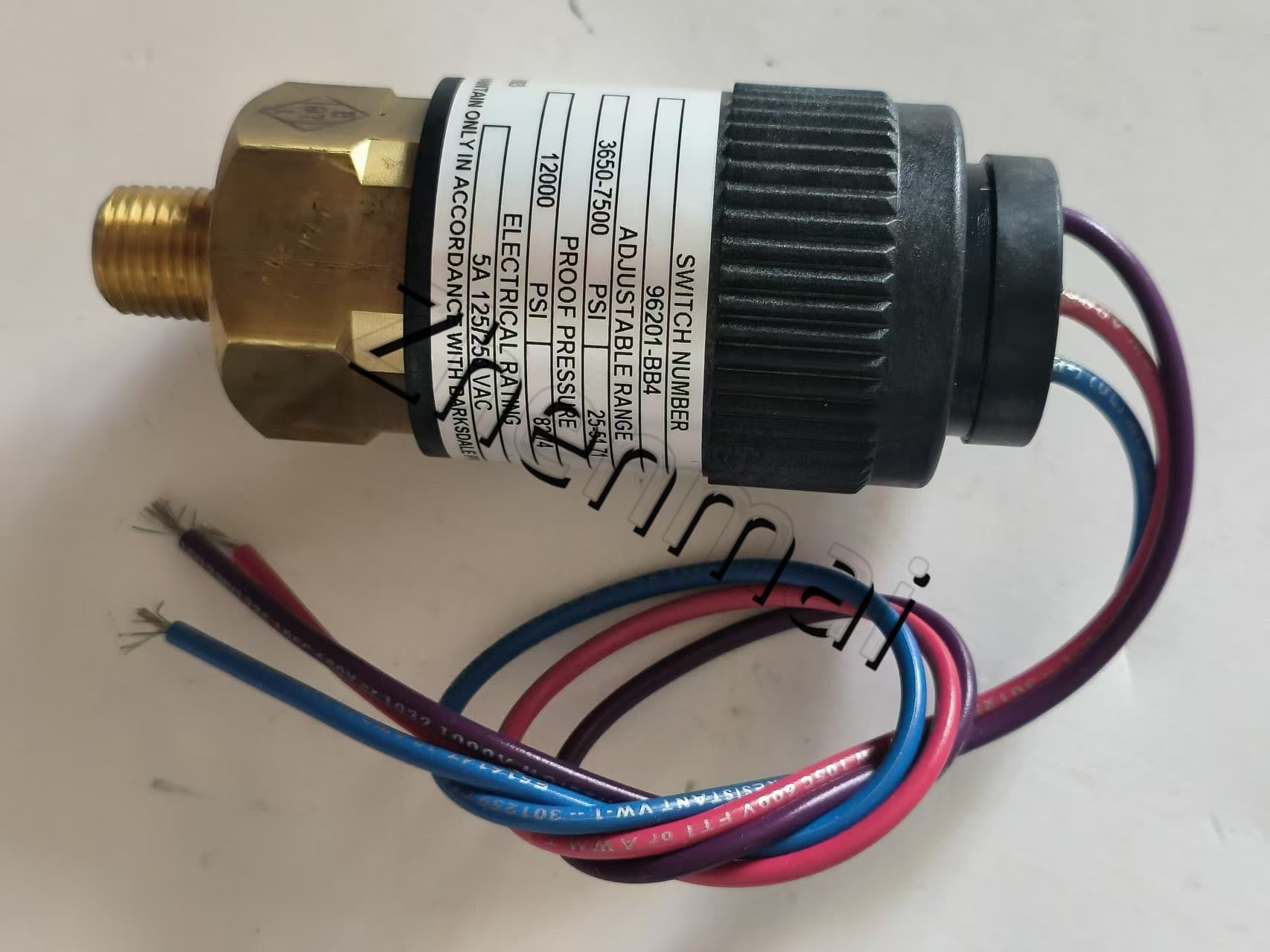

Barksdale Control Products Pressure Switches, 96201 SerieDescription:
Switch, Pressure, CompactDecreasing Pressure:
3,650-6,700 psiIncreasing Pressure:
4,000-7,500 psiContact Type:
SPDTAmbient Temperature:
-40-165 °FProtection Rating:
NEMA 1Connection:
Port: 1/4 NPT MaleThe 96201 series from Barksdale is a SPDT, snap action; single circuit switch. It features low and high pressures including vacuum and is extremely versatile. It offers optional DIN or conduit connector and is rated NEMA 1 as standard, with optional NEMA 4 and IP65 protection.
